Metadata in Islandora

1-minute synopsis

In Islandora, metadata is stored natively in Drupal, in fields. Drupal fields are configured per content type (and per media type for media and per vocabulary for taxonomy terms ). Fields have different field types which determine how you can interact with them (e.g. what content is allowed, and how the values can be displayed). Almost all of our interactions with metadata use standard Drupalisms, though Islandora does add a few specialized field types and methods of serialization.

See also: Fields in the Starter Site

If you want to learn about what metadata fields come out-of-the-box with Islandora, see Starter Site Metadata Configuration.

Bundles: Metadata Profiles

'Bundle'

In Drupal, a generic term for things that can have fields is bundle (synonymously, entity sub-type). There are more specific terms depending on the entity type, i.e.
bundles of nodes are "content types", bundles of Media are "media types", and bundles of taxonomy terms are "vocabularies". Rarely, fields are attached directly to entity types when the entity type does not have bundles (e.g. User).

Content Types

When we create a piece of content in Drupal (such as via the "Add Content" links), the thing we create is a node. Even before creating a node, we must select a content type for that node. A content type, generically known as a bundle or node sub-type, is a set of configurations that determine how that type of content behaves. It includes:

• field definitions
• form configurations
• display configurations.

Each content type determines what fields are available, how (meta)data can be entered and validated, and how (meta)data is displayed, so it is essentially a metadata profile.

You cannot change an entity's bundle.

Once a node is created, its content type cannot be easily changed. The same holds for media and taxonomy terms and their respective bundles. However, you can create a new node of the intended content type, map the field values (programmatically or by copy-and-paste), and update any media or children that refer to the old node to refer to the new one.

The content types available out-of-the-box in Islandora are "Article", "Page", and "Repository Item" - the first two are part of Drupal's Standard Install and contain fields for generic web content, while "Repository Item" was created by the Islandora community as a starting point for you to customize your repository content.

Do I need to make a custom content type?

The Repository Item content type was designed to be flexible and extensible. It is possible to have an entire repository (with heterogenous content) using only Repository Item - and may sites do. To assist with this, the Repository Item content type has a field, "Model", that can be used to configure custom behaviours (i.e. view modes, viewers, etc) based on the type of item: for instance, whether it is a collection, a digital document, or an audio file. You can also extend Repository Item with whatever fields you like, or remove the fields that are present (except the fields that are structural). You can also create a custom content type (or multiple). As long as they have the field with machine name field_member_of then they can be used to hold Islandora content. If you're using multiple content types with Islandora, consider that sharing fields across content types makes it easier to use field-based features in search and Views. See our tutorial for a fuller walk-through of creating a content type.

Media Types

Media types are bundles (like content types, but) for Media. A media type is a collection of fields (along with one special field, usually a file field, that is known as the "storage"). We use fields on media types to store technical metadata such as the height and width of images, mimetype, and file size. If you like, you can add additional metadata fields to media.

Vocabularies

Vocabularies are bundles for taxonomy terms. Unlike nodes or media, terms within vocabularies have an ordering, and can have hierarchical structure, but do not need to.

Vocabularies allow you to add additional descriptive metadata fields to the controlled terms in your repository (e.g. People, Genres, Subjects, ...). One example is the Person vocabulary, which out-of-the-box lets you store and display birth dates, death dates, and alternate names.

There are two ways that users can interact with taxonomies: they can be "closed," e.g. a fixed list to pick from in a dropdown, or "open," e.g. field_tags where users can enter new terms, which are created on the fly. This is not set on the vocabulary itself, but in the configuration of the field (typically on a node).

Large Taxonomy Vocabularies

The Drupal Taxonomy UI is known to break down when your vocabularies get large (e.g. over 20,000 terms). Jonathan Hunt created the CCA Taxonomy Manager module for SFU to solve this problem.

Info

See also: MIG Presentation on Taxonomies by Kristina Spurgin, 2021-07-19

Fields

What are fields?

Fields are places where you can store (meta)data. Each bundle (content type, media type, or vocabulary) defines and configures a set of fields. Bundles are usually managed by a high-permissioned user, such as a site administrator, or a manager responsible for metadata. This section will go deeper into these fields.

Each field has a machine name, such as field_identifier, and a Field Type, such as 'text'. These properties, along with any type-specific storage options (such as field length for text-type fields), are integral to the field, cannot be changed once created, and are constant across any instances where that field is used.

It is possible to re-use the same field across multiple bundles (but they must be of the same entity type - for example, you cannot re-use a node field on a media or taxonomy term). One example of a field that is re-used is the "Media of" field (field_media_of), which is used by all media types that come with Islandora.

Fields also have a label (such as "Identifier") and display and form configurations; these are configured per bundle, so that a field with the same machine name may have a different display name on different content types, and may display differently.

The names and definitions of fields are entirely within Drupal and do not have to correspond to an outside metadata schema.

Migrating from MODS

While you can store MODS (or any other metadata file) as an XML file in a media in Islandora, to get the most out of Islandora we recommend extracting your metadata values into Drupal fields. This allows rich editing, indexing, and views-building features. The fields configured on the Repository Item content type that comes with the Islandora Starter Site were designed with a mapping from MODS in mind. You're free to use it as-is or modify it as desired.

Warning

Drupal fields aren't themselves part of any XML schema, so it's no longer viable to say that your Islandora data "uses" or "conforms to" MODS. However, you can map fields into a variety of XML and RDF formats including MODS - see "Serialization". These mappings are lossy.

MODS has many features that are not part of the Starter Site metadata configuration, and some are difficult to implement:

• Use of type and displayLabel attributes: this can be replicated for individual fields using Paragraphs. Additional theming would be required to display them in a useful way.
• Hierarchical nesting of <relatedItem>: This can be modelled with related items as their own nodes. However, this inflates the repository item count.
• Custom ordering of fields: The ordering of elements in XML is flexible and can be meaningful. In Drupal fields, you can retain the ordering within one field but the presentation order of fields is set for all nodes of a content type.
• Human readability and sense-making: It is important to have a good data dictionary/metadata profile that explains what your fields are used for. The description property of fields can help with this.

Adding, Editing, or Deleting Fields

Fields can be modified under Administration >> Structure >> Content types >> Your Content Type's Name >> Manage fields (/admin/structure/types/your_type/fields). This tab will list all Fields, their Label, Machine Name, Field Type. From this page you can make what edits to the existing fields that you can.

Adding fields

To make a new field, you will need to give it a Label, Machine name (usually automatically generated), and choose a Field Type.

Use the 'Reference' field type to link other content

Commonly you want a field that links to a Taxonomy Term, Media, or Node. These are found under the generic term "Reference" (formerly "Entity Reference"). Once selected, you will be able to choose the type of entity to reference (such as nodes, media, or taxonomy terms)

Next, depending on the field type, you will then define the maximum length of the field, the number of values it can contain, and/or what taxonomies it might link to.

You cannot change intrinsic properties of fields.

As soon as you have created a field, you cannot change the machine name or type. Additionally, once content has been added, you cannot change additional properties such as the number of values allowed in the field or the field length. However, you can add new fields to a content type, even after content is added.

Deleting Fields

It is possible to delete fields. Deleting a field from a bundle instantly deletes all content in that field (unless the content is a reference to an entity in its own right - the referenced entity will persist). This means that:

• if you have a text field and delete it, all content in that text field is gone including from all revisions.
• if you have a reference field such as a taxonomy term field, and you delete the field, then you may have now-unused taxonomy terms that still exist in a vocabulary even though no enties (or revisions) make reference to them.

Manage form display

Bundles let you configure how fields display in the create/edit form, which may be used by content editors for data entry. This configuration happens on the bundle's Manage form display tab. Here, you can arrange the order of fields, hide fields, choose what Widget to use for each field, and configure settings for those Widgets.

Widgets

"Widget" is the name of a configurable editable form element in Drupal. Compare: formatter, which is for display.

The Manage Form Display page presents a table listing all fields. Each field will present a drop-down list where you can choose from the compatible widgets. For instance, an Entity reference field could use autocomplete, a select list, or even checkboxes. Once a widget is selected, its settings are accessed through the gear on the far right of a row. Settings vary per widget, and may include the size of an entry field, or if you use placeholder text, for example.

Using the drag-and-drop interface

Drupal uses drag-and-drop interfaces in many places. Clicking the up-down icon to the left of the label will allow you to drag the item into a new position. There is usually a section at the bottom for elements that are not enabled.

If you don't want to drag, there is a link at the top right of the drag-and-drop table to "Show row weights". This allows you to enter digits instead of clicking and dragging.

Configuring who can edit specific fields

With the Field Permissions module (enabled with the Starter Site), you can configure that only certain roles may edit a specific field. This does not happen on the "Manage Display" page; rather, it is accessed from the "Manage Fields" page.

Manage display

The Manage display tab for a bundle (content type, media type, or vocabulary) is where you will make decisions about how to display the metadata. Order is arranged using another drag-and-drop interface (see note "Using the drag-and-drop interface", above), and fields can again be dragged to the Disabled section to hide the field from display. You can choose the formatter, applicable options, and whether a field's label is displayed above the value, in-line, or hidden.

Formatters

"Formatter" is the name of a configurable field display element in Drupal. Compare: widget, which is for editable forms.

Configuring who can view specific fields

With the Field Permissions module (enabled with the Starter Site), you can configure that only certain roles may view a specific field. This does not happen on the "Manage Form Display" page; rather, it is accessed from the "Manage Fields" page.

Field Report

The Field Report contributed module, included with the Islandora Starter Site, provides an overview of the configuration of fields on each bundle. It can be accessed at Reports >> Field List >> Field Report (/admin/reports/fields/field-report).

Tip

The Field Report module does not list the repeatability, cardinality, or target bundles of fields. The Robertson Library at UPEI developed a forked version, Metadata Field Report, that does this and also provides a downloadable CSV of the field configurations for each bundle.

Field Types

Field types in Drupal determine what kind of data can be stored, and what widgets (see note "Widgets", above) and formatters (see note "Formatters", above) are available.

Drupal comes with a number of built-in field types including boolean, datetime, entity reference, integer, string, text, and text_with_summary. More field types, formatters, and widgets are available in various modules. The Drupal 8 documentation on FieldTypes, FieldWidgets, and FieldFormatters includes a list of the core field types with brief definitions, along with a list of core widgets and formatters. There is also documentation for creating custom field types, widgets, and formatters.

Here we will describe a selection of field types of particular interest for Islandora users:

• Entity Reference (from Drupal Core) - for linking to other content or controlled terms
• Authority Link (from the Controlled Access Terms module) - for storing URIs
• EDTF (from the Controlled Access Terms module) - for storing dates
• Typed Relation (from the Controlled Access Terms module) - for storing contributors and their roles

Entity Reference

Entity Reference fields are a special type of field built into Drupal Core that creates relationships between entities such as nodes, media, and taxonomy terms. The field's configuration options include (but are not limited to):

• Which kind of entity can be referenced (only one type of entity to reference can be defined per field, and this cannot be changed once data has been created)
• The allowed number of values (limited or unlimited)
• Whether to use Views for filtering
• Whether to allow users to create new referenced entities while inputting data, if they don't already exist

The Repository Item content type, provided by the Islandora Starter Site, includes several entity reference fields that reference vocabularies defined by the Islandora Core Feature and Controlled Access Terms Defaults modules.

Configuration for Entity Reference fields

The screenshots below show how you can configure an entity reference field (in this case the Subject field on the Repository Item content type).

Fig. 1: "Field Storage" settings for an entity reference field where you set whether the field will reference "Content" (nodes), taxonomy terms, or any other type of Drupal entity

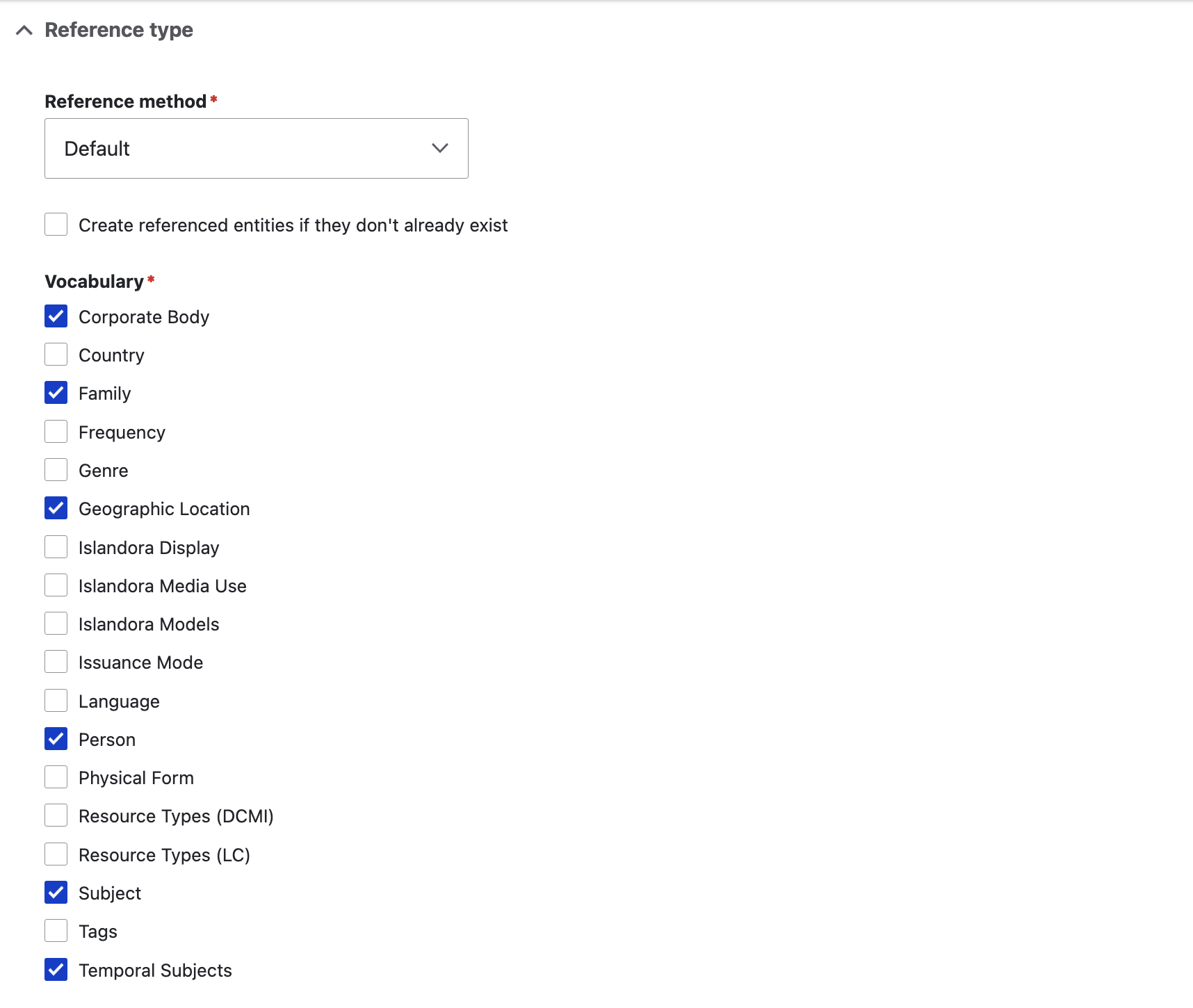

Fig. 2: Reference type settings for an entity reference field where you select which vocabularies can be referenced

Data Consistency

Selecting which vocabularies can be referenced by an entity reference field does not impose constraints on the underlying database, so it is possible to load references to other vocabularies without being stopped or warned when ingesting data through various migration methods. However, this will result in content that cannot be edited/saved in the GUI without removing the offending term.

Authority Link

The Authority Link field type is defined in the Controlled Access Terms module and is a field that holds two associated values:

• An external authority source (selected from a configurable list of external authority options),
• A link (URI) to a specific term from the selected external authority source

Within the Islandora Starter Site, this field type is used by the "Authority Sources" (field_authority_link) field, which is used in various Vocabularies including Person, Family, Subject, and Geographic Location. It is multivalued so can hold multiple URIs that you believe to be equivalent to the same concept.

Tip

The term external authority source refers to both controlled vocabularies like Art & Architecture Thesaurus or FAST as well as Name Authority Files like Library of Congress Name Authority File or VIAF.

For instance, if you are creating a term called "Red squirrels" within the "Subject" Vocabulary, you may want to include the URI for "Tamiasciurus" from the FAST (Faceted Application of Subject Terminology) vocabulary. If you configured the field Authority Sources to list FAST (Faceted Application of Subject Terminology) as an external authority source option, you can select this source and add the associated URI (http://id.worldcat.org/fast/1142424).

Configuration for Authority Link fields

Each instance of an Authority Link field can have different external authority source options. To configure an Authority Link field to change these options, navigate to the Manage Fields screen (e.g. Administration>>Structure>>Taxonomy>>Taxonomy Vocabulary Name>>Manage Fields) and select "Edit" for the Authority Link field (such as "Authority Sources"). Then enter your options in the text box, entering one value per line in the format key|label. The key is the stored value (typically an abbreviation representing the authority source). The label will be used in displayed values and editing forms.

By default, the Authority Sources field is repeatable. To change this, edit the "Field settings" and change Allowed numbers of values from "Unlimited" to "Limited" and enter the number of allowable values. If you are re-using the same field in multiple vocabularies, this will apply across all instances of this field. You cannot restrict the repeatability of a field in a way that would disallow existing data in the field.

EDTF

The EDTF field type is defined in the Controlled Access Terms module, and designed for recording dates in Extended Date Time Format, which is a format based off of the hyphenated form of ISO 8601 (e.g. 1991-02-03 or 1991-02-03T10:00:00Z), but also allows expressions of different granularity and uncertainty. The Default EDTF widget has an optional validator that only allows strings that conform to the EDTF standard. The Default EDTF formatter allows these date strings to be displayed in a variety of human-readable ways, including big- or little-endian, and presenting months as numbers, abbreviations, or spelling month names out in full. Close review of the EDTF Specifications is recommended when configuring this field type.

Endianness

• Big-endian = year, month, day (e.g. 1988-02-03 or 1988 Feb 3).
• Little-endian = day, month, year (e.g. 03-02-1988 or 3 February 1988).
• Middle-endian = month, day, year (2/3/1988 or Feb. 3, 1988).

Validation

The EDTF Widget always validates whether the input string is valid EDTF format. As part of this, the components must be within appropriate ranges (years are four digits unless prefixed with Y; months must be within 1-12 or 21-41, and day values must be within 1-31). However, a date that falls outside what we actually consider "real" dates, such as 1999-02-31, will pass this basic validation. There is a second, "strict" validation option in the widget that can be enabled and ensures that dates provided are really valid, and would disallow 1999-02-31.

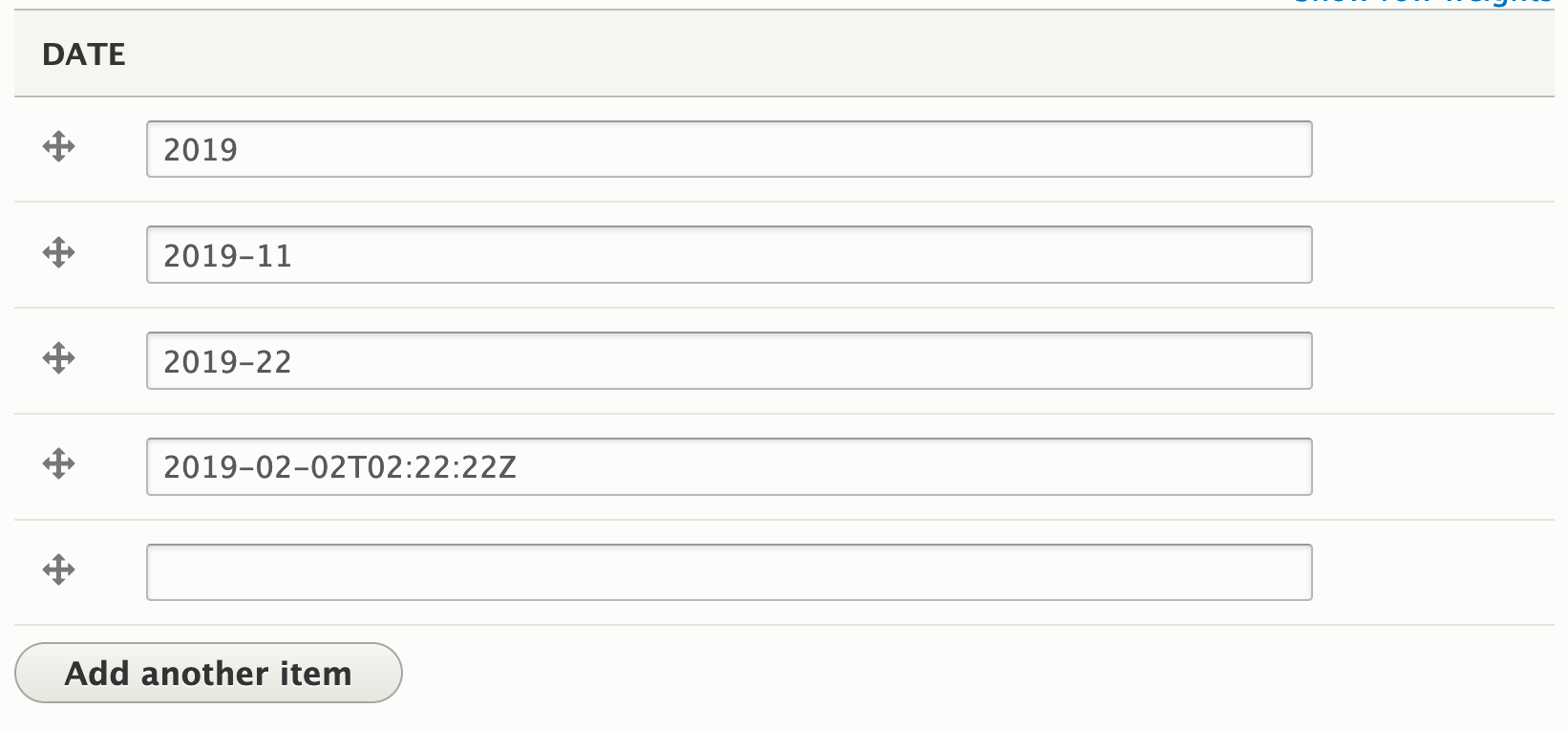

Example of valid inputs in a multivalued EDTF Date field (including the seasonal value 2019-22 as defined in the EDTF specification):

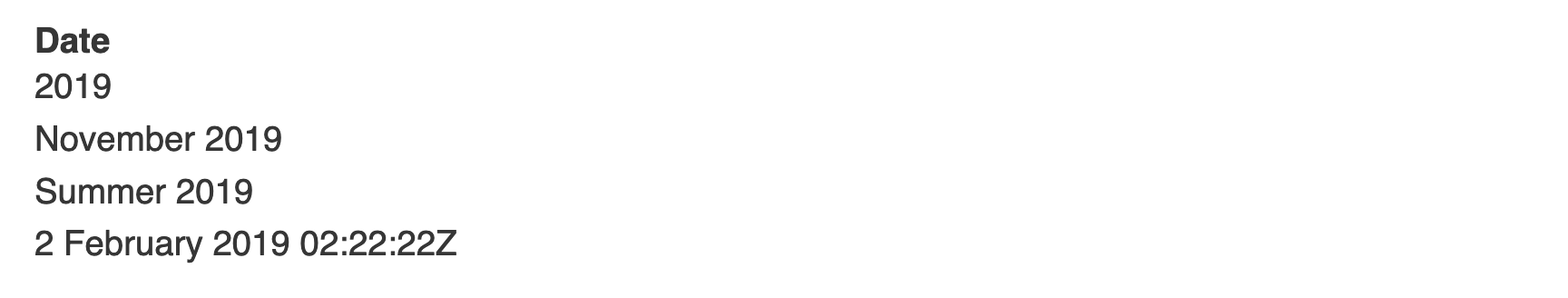

Example of the same EDTF dates formatted using little-endian format:

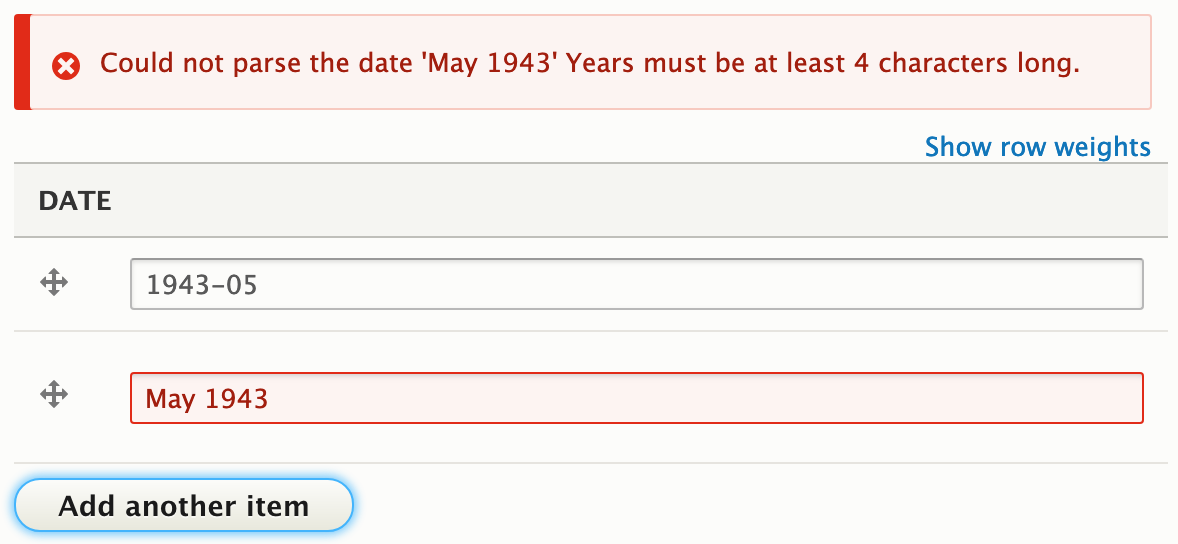

EDTF field values cannot include textual representations of dates, as shown below in this example of a valid EDTF value ('1943-05') and an invalid value ('May 1943') with the corresponding error message. Use the formatter configurations detailed further below to achieve textual display of dates.

Configuration for the Default EDTF Widget

There is only one widget available for EDTF fields, the "Default EDTF Widget". If you create an alternate widget, please share it with the community!

To configure the selected widget for a field on the Manage Form Display page for any bundle, click the gear icon at the far right.

Configuration options include enabling strict date validation, allowing date intervals and allowing date sets.

Ranges or Times - your choice

When configuring the EDTF widget, you can choose to allow date intervals (i.e. date ranges), but doing this prevents the widget from accepting any values that include times. If you'd like a single field that contains date intervals as well as date-time values (though not within a single value as that would not be valid EDTF), you're welcome to file an improvement request (and link it here!)

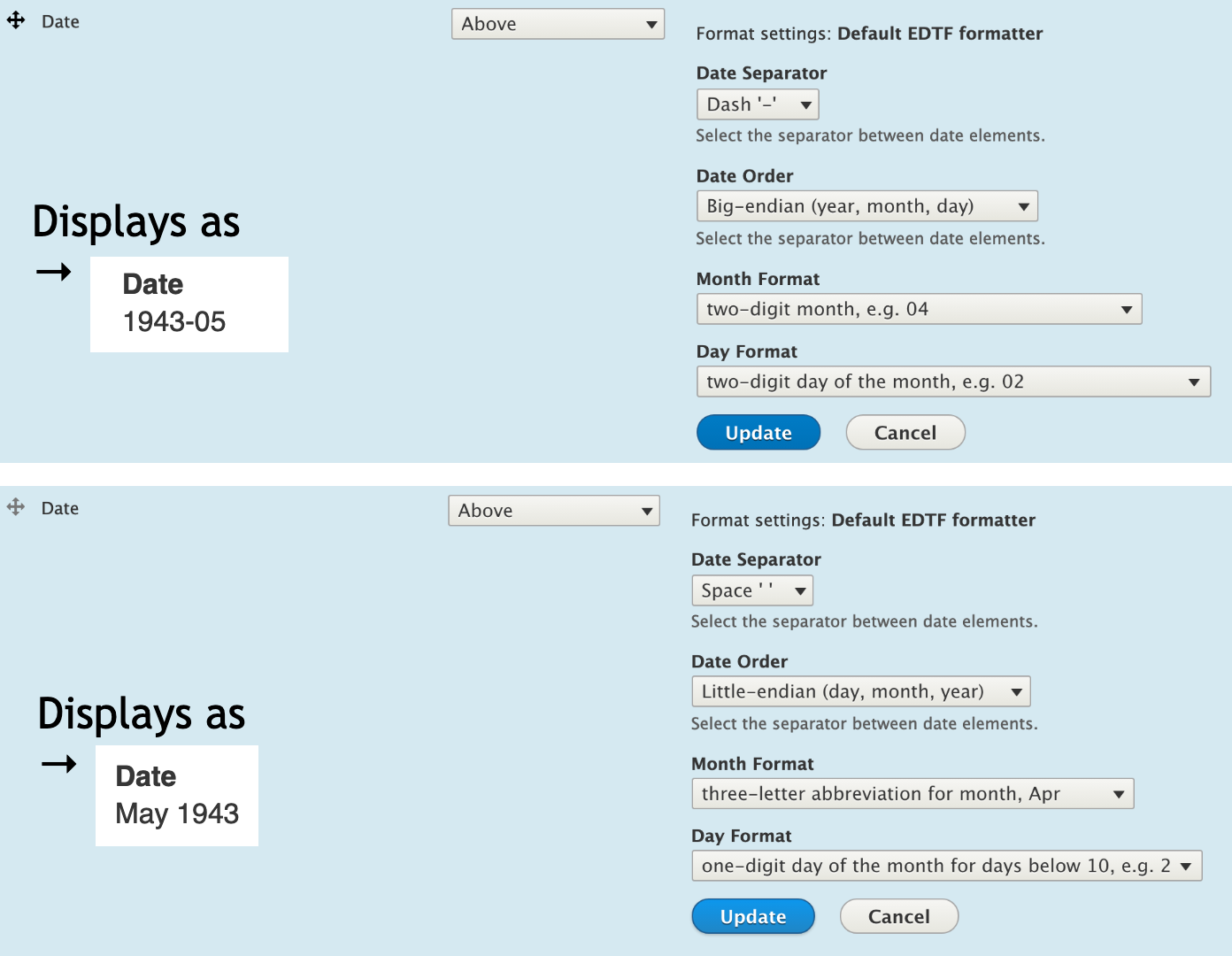

Configuration for the Default EDTF Formatter

There is only one formatter available for EDTF fields, the "Default EDTF Formatter". If you create an alternate formatter, please share it with the community!

To configure the selected formatter for a field on the Manage Display page for any bundle, click the gear icon at the far right.

By selecting the appropriate configuration options for "Date separator", "Date Order", "Month Format", "Day Format", and "Year Format" you can configure a date to display in various ways.

Indexing and sorting EDTF fields in search results

When indexing EDTF date fields in Solr, the entered value (not the displayed value) is indexed, and it is indexed by default as a string. See heading "Date Facets and the EDTF Year Processor" for an alternate method of indexing EDTF fields.

Solr

The Solr string data type requires the full field value to match the query in order to count as a match. This means that searching for 2014 will not retrieve a record where the recorded date value is 2014-11-02. Changing the Solr data type to fulltext will allow partial matches, but it will prevent the field from being used as a facet.

Sorting on EDTF date fields may be configured in your search results Views. This results in a simple ordering by the literal EDTF date string. A field with multiple or unlimited number of allowed values may be set as a sort field. In this case, the first occurrence of the field value is used as the sorting value.

"EDTF Year" Processor

The Controlled Access Terms module provides a search API processor, called "EDTF Year", that allows you to index the year values of one or more EDTF fields as integers. This allows for year-only date facets. Multiple fields (such as Date Created, Date Issued, etc) can be indexed together into a single field. Only the year, not month or day information, will be indexed. Multiple years will be indexed for a single EDTF value if the value is a range (that spans years) or if some year digits are unspecified.

In the Islandora Starter Site, this field comes enabled and configured. To configure this field anew, first enable the processor by selecting the "EDTF Year" checkbox on the "Processors" tab of your search index (e.g. dmin/config/search/search-api/index/default_solr_index/processors) scroll down to the bottom of the Processors page to the "Processor Settings" and under the "EDTF Year" vertical tab, select the fields you would like indexed as well as various options. , and then "Add field" on the "Fields" tab and select

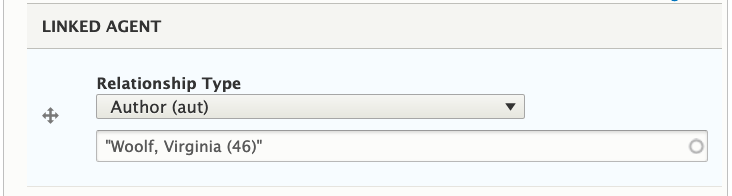

Typed Relation

The Typed Relation field is defined in the controlled_access_terms module, is an extension of Drupal's Entity Reference field type, and allows the user to qualify the type of relation between the resource node and other entities, such as taxonomy terms. For example, it enables the inclusion of a resource's contributor's (assuming contributor names are modelled as taxonomy terms or some other Drupal entities) as well as their roles (such as "author", "illustrator", or "architect") in the resource node itself. Using only Drupal's Entity Reference fields, we would need individual fields for "author", "illustrator", "architect", and any other roles that may need to be made available. Using a Typed Relation field, we can have one Entity Reference field for "Contributors" and let the user pick the affiliated role from a predefined dropdown list.

Typed relation name

The parts of a field are called properties, so 'entity reference' and 'relation type' are properties of the Typed Relation field type.

Configurations for the Typed Relation field

The Islandora Starter Site includes a Typed Relation field labelled 'Contributors' as part of the Repository Item content type, and populates the available relations from the MARC relators list. This field was formerly called "Linked Agent".

The list of available relations for this Contributors field is configurable at '/admin/structure/types/manage/islandora_object/fields/node.islandora_object.field_linked_agent'.

Typed relation tradeoffs

• If you apply this field to another content type, you can define unique relations available for that instance of the field.
• However, multiple instances of this field means administrative overhead to maintain the separate lists of relations defined for each instance.

Publishers

Until Mar 2024, the Islandora Starter Site included publishers in the Contributors (field_linked_agent) field. The MIG made the decision to make publisher its own text field, in order to make it easier to separate publishers from other contributors, and to prevent clutter in the linked taxonomies. Publishers are often recorded by transcribing what is on the item, rather than formatting the name per Authority rules, so variations on a single name are expected.

Relations are defined in the format key|value, and the key is used in the RDF mapping (see below).

By default, facets can be created for typed relation fields that will facet based on the linked entity alone, not separating references based on the relationship type.

Structural Metadata

Vocabularies

Islandora (through the Islandora Core Feature) creates the 'Islandora Models' vocabulary which includes the terms 'Audio', 'Binary', 'Collection', 'Compound Object', 'Digital Document', 'Image', 'Newspaper', 'Page', 'Paged Content', 'Publication Issue', and 'Video'. Islandora Starter Site provides contexts that cause certain actions (e.g. derivatives to happen, or blocks to appear) based on which term is used.

The Controlled Access Terms module provides additional vocabularies:

• Corporate Body
• Country
• Family
• Form
• Genre
• Geographic Location
• Language
• Person
• Resource Types
• Subject

Each of these vocabularies has its own set of fields allowing repositories to further describe them. The Repository Item content type has fields that can reference terms in these vocabularies. See 'Entity Reference fields' in the 'Field Types' section below.

The vocabularies provided by default are a starting point, and a repository administrator can create whatever vocabularies are desired.

Configure Field Integrations

Fields integrate with many other parts of Drupal. Consider the following when you add/edit/delete a field:

• Form Display - set a field to display (or not) in your form, and set its widget, at Administration >> Structure >> Content types >> [Your Content Type] >> Manage form display. You can also set it to display (or not) to certain users based on Field permissions at Administration >> Structure >> Content types >> [Your Content Type] >> Manage fields >> [Your new field].
• Display - set the field to display (or not) to the public at Administration >> Structure >> Content types >> [Your Content Type] >> Manage display. You can also set it to display or not to certain users based on Field permissions at Administration >> Structure >> Content types >> [Your Content Type] >> Manage fields >> [Your new field].
• Solr - Solr configuration is set at Administration >> Configuration >> Search and metadata >> Search API >> [Default Solr content index] >> Fields. By default, Solr indexes the "Rendered Item" using the display mode "Search index". By default, the "Search index" display mode is not configured separately, so it renders using the "Default" display mode which is the default (or only) tab when configuring Display, above. This means that if you configured your new field to display, then it will be automatically available to fulltext search. But if you want to make a facet, or a fielded search (using Advanced Search), then you need to index the field separately, as either String (for a facet) or fulltext (for a fielded search). To do this, use the "+ Add field" button in the Solr configuration and select your field, under the "Content" section. If it is a reference field (such as a taxonomy term field or a related item field) then you may want to "dive down" using the "(+)" buttons to index the name or title of the referenced entity.
• Facet - to make a facet, index the field as a string field (above). Then, create the facet at Administration >> Configuration >> Search and metadata >> Facets. Finally, configure the facet to display by placing the corresponding block in the desired region.
• Fielded Search - to make your new field one of the drop-downs in the Advanced Search block, first index it in Solr as fulltext (as above). Find the Advanced Search block and click "Configure" and then drag and drop your new field into the non-hidden section. Save the block config.
• RDF - In the following section ("Getting Metadata into Fedora and a Triple-Store") we discuss how to index a field using Drupal's RDF mappings. You will want to do this if you are using Fedora or a Triple-store, or if you are using RDF to generate OAI-PMH DC data.
• OAI-PMH MODS - if you are using OAI-PMH to generate MODS for each object, you can configure how this field displays by setting it in the appropriate View, by default "OAI PMH Item Data". After adding the field, give it a label that matches the rest_oai_pmh module's templates/mods.html.twig. For example, that template file includes {{ elements.publisher }} so the label in views needs to be exactly publisher. Save the View.
• Citation CSL Mapping - To let a new field be used in the creation of citations with Citation Select, navigate to the Citation CSL Settings (as of Citation Select version 2.0, this is at Administration >> Configuration >> Citation Select Settings >> CSL Mappings. Select your new field where applicable.

An example of this, in terms of config changes, is visible in the changeset of the Starter Site's 1.6.0 version for the Publisher field. However, pulling such a changeset is unlikely to work smoothly and it is recommended to set these configurations manually.

Getting Metadata into Fedora and a Triple-store

Depending on the needs at your institution, you may or may not be using Fedora with your Islandora installation. You also may or may not be hoping to publish your metadata as RDF triples that can be queried in a triplestore. Both of these functionalities are driven by the JSON-LD module (written for Islandora), which provides a JSON-LD serialization of your content nodes, media nodes, as well as your taxonomy terms. This JSON-LD is what gets ingested by Fedora, and is also what is used to add RDF triples to the blazegraph triplestore if you choose to use that service.

The JSON-LD serialization for an entity is available by appending _format=jsonld to the entity's URL. Below is an example JSON-LD document representing the RDF serialization of a Repository item node created in a standard islandora-playbook based vagrant VM:

{
  "@graph":[
    {
      "@id":"http://localhost:8000/node/1",
      "@type":[
        "http://pcdm.org/models#Object"
      ],
      "http://purl.org/dc/terms/title":[
        {
          "@value":"New York, New York. A large lobster brought in by the New England fishing boat [Fulton Fish Market]",
          "@language":"en"
        }
      ],
      "http://schema.org/author":[
        {
          "@id":"http://localhost:8000/user/1"
        }
      ],
      "http://schema.org/dateCreated":[
        {
          "@value":"2019-03-14T19:05:24+00:00",
          "@type":"http://www.w3.org/2001/XMLSchema#dateTime"
        }
      ],
      "http://schema.org/dateModified":[
        {
          "@value":"2019-03-14T19:20:51+00:00",
          "@type":"http://www.w3.org/2001/XMLSchema#dateTime"
        }
      ],
      "http://purl.org/dc/terms/date":[
        {
          "@value":"1943-05",
          "@type":"http://www.w3.org/2001/XMLSchema#string"
        },
        {
          "@value":"1943-05",
          "@type":"http://www.w3.org/2001/XMLSchema#gYearMonth"
        }
      ],
      "http://purl.org/dc/terms/extent":[
        {
          "@value":"1 negative",
          "@type":"http://www.w3.org/2001/XMLSchema#string"
        }
      ],
      "http://purl.org/dc/terms/identifier":[
        {
          "@value":"D 630714",
          "@type":"http://www.w3.org/2001/XMLSchema#string"
        }
      ],
      "http://purl.org/dc/terms/type":[
        {
          "@id":"http://localhost:8000/taxonomy/term/11"
        }
      ],
      "http://purl.org/dc/terms/rights":[
        {
          "@value":"No known restrictions. For information, see U.S. Farm Security Administration/Office of War Information Black & White Photographs(http://www.loc.gov/rr/print/res/071_fsab.html)",
          "@type":"http://www.w3.org/2001/XMLSchema#string"
        }
      ],
      "http://purl.org/dc/terms/subject":[
        {
          "@id":"http://localhost:8000/taxonomy/term/26"
        }
      ],
      "http://schema.org/sameAs":[
        {
          "@value":"http://localhost:8000/node/1"
        }
      ]
    },
    {
      "@id":"http://localhost:8000/user/1",
      "@type":[
        "http://schema.org/Person"
      ]
    },
    {
      "@id":"http://localhost:8000/taxonomy/term/11",
      "@type":[
        "http://schema.org/Thing"
      ]
    },
    {
      "@id":"http://localhost:8000/taxonomy/term/26",
      "@type":[
        "http://schema.org/Thing"
      ]
    }
  ]
}

The RDF mapping for a content type, media type, or vocabulary defines how fields in Drupal are mapped to properties in the JSON-LD serialization. The mapping defines the RDF predicates that should be used for each field. You reference Drupal fields via their Machine Name, and the RDF predicate by using the conventional syntax namespace:predicate. In this example, the dc prefix stands for http://purl.org/dc/terms/, so when concatenated the final RDF predicate is http://purl.org/dc/terms/title.

To show a small example, the RDF mapping:

title:
  properties:
    - dc:title

will map the Repository item's title field to http://purl.org/dc/terms/title. As a result, the node's title value appears like this in the JSON-LD output:

"http://purl.org/dc/terms/title":[
  {
    "@value":"New York, New York. A large lobster brought in by the New England fishing boat [Fulton Fish Market]",
    "@language":"en"
  }
],

Tip

To set up prefixes for namespaces and see a list of available predefined namespaces, see the "RDF Generation" page.

Typed Relation fields in RDF

Unlike other fields, which can be assigned RDF predicates in RDF Mapping YAML files, a typed relation field uses a different predicate depending on the chosen type. These predicates are assigned using the 'keys' in the key|value configuration. The key must be formatted namespace:predicate, e.g. relators:act.

Bug

The Drupal RDF module is currently limited in the complexity of graph you can generate. All fields must be mapped directly to either a literal value, or a reference to another content type instance, media type instance, or taxonomy term instance. It is not currently possible to create blank nodes or skolemized nodes for nesting fields under more complex structures.

Batch editing metadata in fields

If you are editing multiple resources in order for them to have the same metadata value, the Views Bulk Edit module can help. Here is a video of creating a view using Views Bulk Operations to apply a subject term to multiple resources simultaneously.

For more complex changes, or when the values need to differ for each value, an export-modify-reimport method may be needed. Use a view to export CSV or other structured data (including an identifier such as a node id), modify the values as necessary, then use migrate csv or Workbench to re-import and update the values.

Exporting Data

One common approach for exporting your content and/or taxonomy data out of Islandora is to use Drupal's Views Data Export module. The module has extensions that can allow you to configure exports as CSV, XML, text files, and other formats based on your local needs.

Drupal Bundle Configurations

In Islandora, content models are primarily created using content types (also known as node bundles) and media bundles. Bundles are defined by YAML configuration files. To create new content models, one would create the needed content types and media bundles via UI, then export the yml files related for those bundles using Configuration Synchronization (http://localhost:8000/admin/config/development/configuration) or Features. An understanding about the structure of a bundle and various configuration files used to define it helps in creating and updating it.

Content types and media bundles can be thought of as web forms consisting of fields. Drupal provides widgets to define the behavior of a field and field storage to define how the data is stored in the database. Drupal provides various display modes to show the forms to user when they are editing (Manage form display) or viewing (Manage display).

A content model is packaged as a module for installation. All yml files are put in config/install folder of the module. Note that not all content models would contain media bundles.

The following files define the bundles themselves. It contains some metadata about the bundle and lists its dependencies.

node.type.your_content_type.yml
media_entity.bundle.your_media_bundle.yml

The following files define the fields attached to the bundle forms. There must be one config file for each field in your bundle, except for the default drupal fields.

field.field.node.your_content_type.field_name1.yml
field.field.node.your_content_type.field_name2.yml
...
field.field.media.your_media_bundle.field_name1.yml
field.field.media.your_media_bundle.field_name2.yml

If the new bundle contains new fields, then field storage configurations for the newly created fields would be needed as well. Note that if you reused existing fields, storage definitions should not be defined again. Storage config contains information about the number of values allowed for that field (cardinality).

field.storage.node.field_new_name3.yml
field.storage.media.field__new_name3.yml

There is a configuration file for each combination of bundle / display mode when managing form displays. Usually, form displays will have default and inline modes.

core.entity_form_display.media.your_media_bundle.default.yml
core.entity_form_display.media.your_media_bundle.inline.yml
---
core.entity_form_display.node.your_content_type.default.yml
core.entity_form_display.node.your_content_type.inline.yml

There is a configuration file for each combination of bundle / display mode when managing displays. Usually, displays will have default and teaser modes for content types and default and content modes for media bundles.

core.entity_view_display.media.your_media_bundle.default.yml
core.entity_view_display.media.your_media_bundle.content.yml
---
core.entity_view_display.node.your_content_type.default.yml
core.entity_view_display.node.your_content_type.teaser.yml

In addition, Islandora needs an RDF mapping to express the content in RDF and to sync to fedora. There will be one RDF mapping per bundle.

rdf.mapping.media.your_media_bundle.yml
rdf.mapping.node.your_content_type.yml

---

Last update: June 9, 2025
